HDPE PIPES

KPMI HDPE Pipes

Krah pipes are made to endure pressures and tolerances of the highest order. This makes our pipes ideal for modern applications such as water supply, sewer lines, and industrial applications where high pressure and temperature are concerns. With their high strength and flexibility, Krah pipes are incredibly reliable and can be designed to meet all sorts of custom requirements.

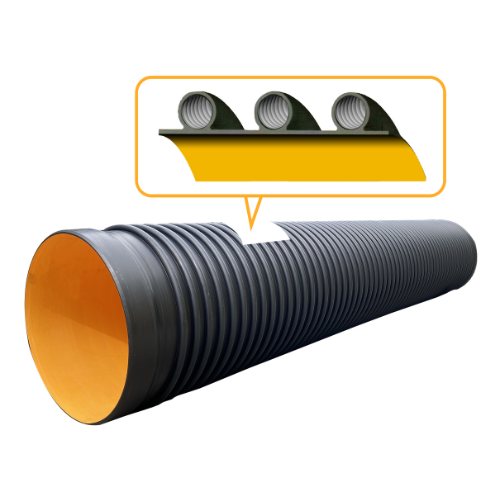

Structured Wall Pipes/Profiled Wall Pipe (PR)

Despite having a very low weight, a structured wall pipe or profiled pipe can be used in applications requiring high external loads. The weight can be decreased by up to 65% when comparing a profiled pipe to a solid wall pipe with the same ring stiffness. Our pipes’ wall thicknesses can be adjusted in a range of sizes to accommodate different loads. The smooth interior and profiled exterior of the structured wall pipes are their primary characteristics. These profiles can be used in pipeline systems like sewage, drainage, storm drains, and ventilation.

– Diameter sizes below 1000mm (900mm – 400mm)
– For Low Ring Stiffness: Class SN2, SN3, SN4, SN5
– Pressurized application for diameter size 1000mm - 3500mm
– Class: 1 Bar, 2 Bar, 3 Bar, 4 Bar

Best for non-traffic and non-load bearing application

HDPE Manholes Pipe Standard Tangential Special Pipes

Rigid & Durable

Reinforced with core tube for higher external load capacity

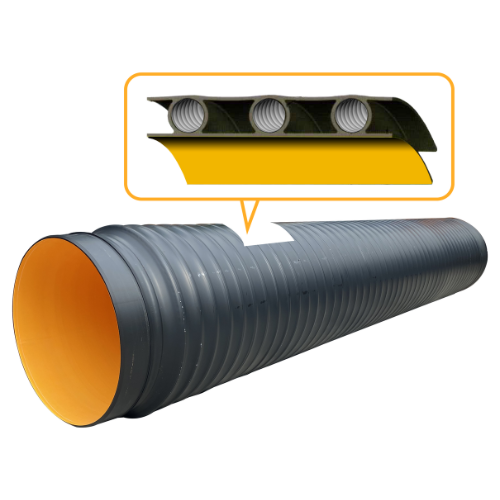

Coverted Profile Wall Pipe (CPR)

Covered wall pipes have a smooth interior and exterior, as well as an internal profile with one or more layers. This profile is used for extremely high loads and large diameters because of its extremely long-term stiffness. It is also excellent for manholes and fitting fabrication.

- For Medium Ring Stiffness: Class SN6, SN8, SN10, SN12, SN13
- Diameter sizes above 1000mm – 2000mm
- Pressurized application for diameter size 1000mm - 3500mm
- Class: 1 Bar, 2 Bar, 3 Bar, 4 Bar

Higher external pressure capacity

Rigid & Durable

Reinforced with core tube for higher external load capacity

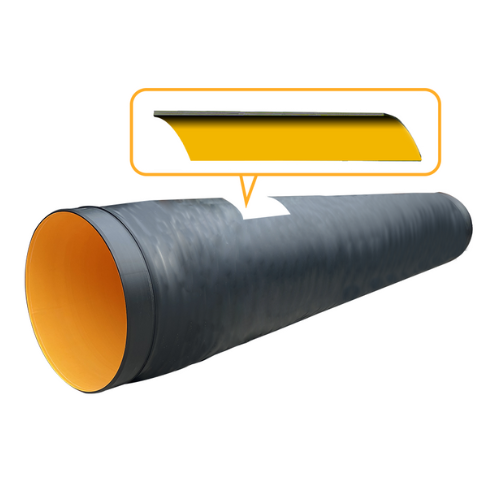

Solid Wall Pipe

Solid wall pipes have an outer surface that is slightly uneven and an inner surface that is smooth. The pipes are made uniformly. Additionally, because these solid wall pipes are tempered, there are no frozen stresses. These pipes are suitable for use with high internal working pressure.

-For pressurized application

-Class: 1 BAR, 2 BAR, 3 BAR, 4 BAR

-Also used to fabricate different fittings such as bends, reducers, and manholes

Suitable for high pressured application

Rigid & Durable

Up to 200mm thickness

Krah Pipes Manila, Inc. offers engineered solutions for complete piping systems.
